IRMA 6 R2

IRMA 6 R2

A new standard for future-proof Automatic Passenger Counting and object recognition

Ready for the rush hour. Ready for every new day. IRMA 6R2 takes Automatic Passenger Counting to the next level. The high-tech counting sensor expands the possibilities of the proven time-of-flight technology in all respects. This enables IRMA 6R2 to provide highly detailed 3D images in real time.

Simpler, more intuitive and flexible

State-of-the-art signal processing reliably detects passengers boarding and alighting the vehicle as well as relevant objects such as wheelchairs and bicycles. The installation is faster and simpler than ever before. The implementation of the ITxPT sensor communication achieves maximum standardization. IRMA 6R2 = Plug&Play.

PRECISE + FAST
High-tech sensor to differentiate and count people and objects (adults, children, bicycles, wheelchairs) based on 3D data and AI algorithms Simultaneous detection of the direction of movement of passengers boarding and alighting (even with low door heights and crowds) Latest generation 4-core processor, AI processor, graphics processor, digital signal processor Real-time transfer of highly accurate raw data to the on-board computer, a server or to the Cloud (IoT-capable)
  • High-tech sensor to differentiate and count people and objects (adults, children, bicycles, wheelchairs) based on 3D data and AI algorithms
  • Simultaneous detection of the direction of movement of passengers boarding and alighting (even with low door heights and crowds)
  • Latest generation 4-core processor, AI processor, graphics processor, digital signal processor
  • Real-time transfer of highly accurate raw data
  • to the on-board computer, a server or to the
  • Cloud (IoT-capable)
SECURE
Role-based user management Secure firmware and firmware updates through signing Event logging even in the case of power outages for troubleshooting and security incidents
  • Role-based user management
  • Secure firmware and firmware updates through signing
  • Event logging even in the case of power outages for troubleshooting and security incidents
USER-FRIENDLY + ADAPTABLE
Plug&Play: Straightforward installation with an integrated mounting system and few configuration parameters Simple commissioning of the sensor through import/export of the configuration Customer-specific accessories and a large choice of cables for different installation requirements Intuitive, secure, multilingual web interface for installation and service
  • Plug&Play: Straightforward installation with an integrated mounting system and few configuration parameters
  • Simple commissioning of the sensor through import/export of the configuration
  • Customer-specific accessories and a large choice of cables for different installation requirements
  • Intuitive, secure, multilingual web interface for installation and service
MULTI-FUNCTIONAL + ROBUST
Independent of ambient light due to active illumination with laser-based VCSEL technology Self-diagnosis: Sensor status displayed via LEDs, web interface and log queries for quick troubleshooting Automation of updates, configuration and commissioning thanks to comprehensive API
  • Independent of ambient light due to active illumination with laser-based VCSEL technology
  • Self-diagnosis: Sensor status displayed via LEDs, web interface and log queries for quick troubleshooting
  • Automation of updates, configuration and commissioning thanks to comprehensive API
FUTURE-PROOF
Latest hardware with long-term availability andmaximum computing power for durable operationin public transport Flexible sensor platform for future expansions and new features
  • Latest hardware with long-term availability andmaximum computing power for durable operationin public transport
  • Flexible sensor platform for future expansions and new features

Easy to install

Power over Ethernet

cloud-ready

Bicycle Counting

Groundbreaking technology

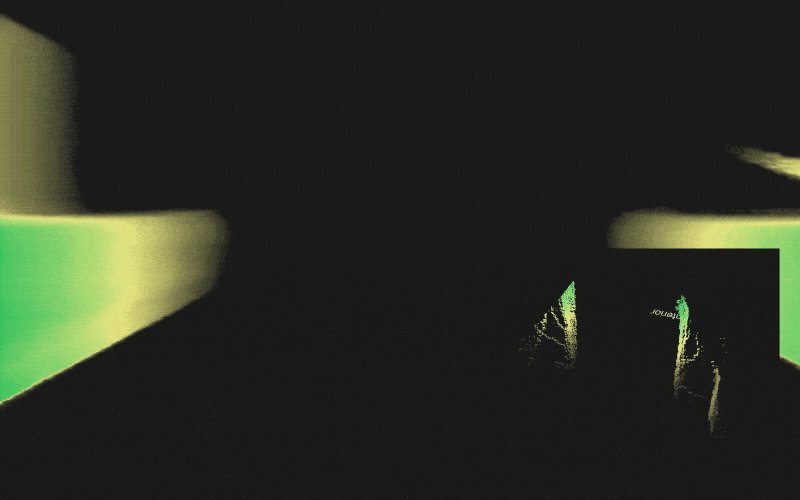

IRMA sensors work according to the time-of-flight principle. The sensors measure the distance to objects based on the time of flight. This produces meaningful 3D data, which can be evaluated reliably and fully automatically.

Learn more

Applications

  • Passenger load detection in real-time
  • Effective passenger distribution
  • Demand-based control of fleet use
  • Vehicle design according to passenger requirements
  • Cost reduction thanks to optimisation of routes
  • Precise revenue sharing based on the transport service provided
  • Comparison of passenger volume with ticket sales
  • Transmission of the passenger load detection to traffic control systems or rescue services for emergency purposes

Learn more

At a glance
Technical Details
Dimensions (WxHxL)

M12: 211±2 × 62 × 32.3*
RJ45: 192 × 62 × 50.2*

Housing

Die-cast aluminium housing, optical openings made from polycarbonate

Protection class

M12: IP65
RJ45: IP20 (optionally IP41)*

Interface / connection

M12: Ethernet M12 D-coded, 100 Mbit/s, IO M12 B-coded, Power M12 A-coded
RJ45: Ethernet RJ45 100 Mbit/s, IO, Power: Terminals

Type approvals, standards

EN50155, ECE, CE, EN50121-3-2, EN45545-2, EMV-06

Vehicle integration / system architecture

ITxPT, IBIS-IP (VDV 301), QIP, UIP retrofit

Power supply

24 VDC
POE (according to IEEE 802.3af: type 1, class 0)*

Weight

471 – 501 g

Pixels

76,800 pixels

MTBF

1.24 x 10⁶ h

Required external lighting

0 lux

Installation height

1.8 to 2.5 m

Counting accuracy

up to 99%*

Inputs/outputs

1 each*

* see product data sheet

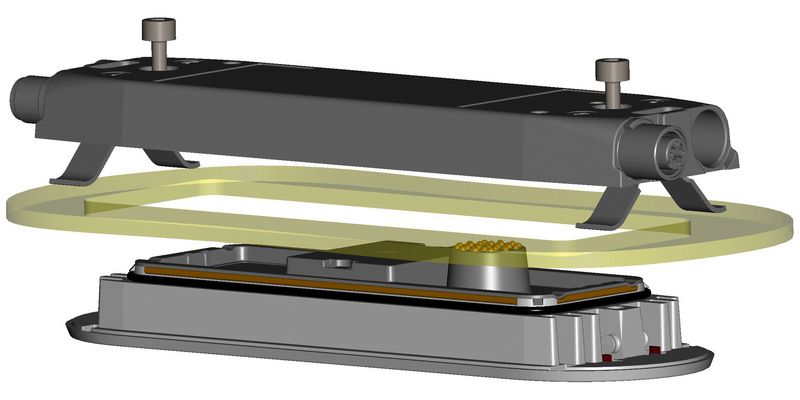

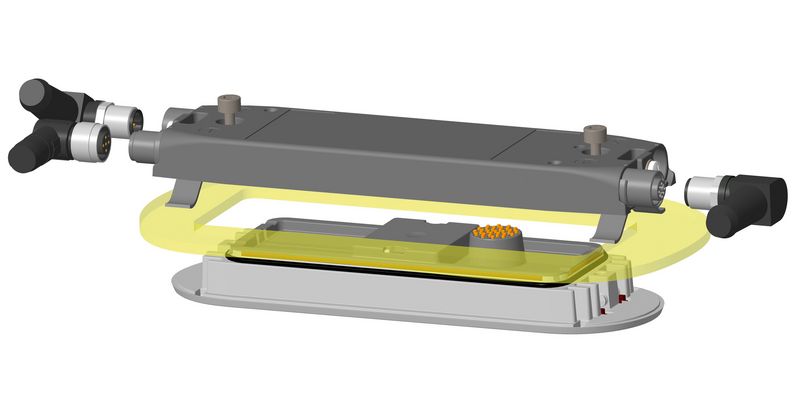

1 Interface unit | 2 Sensor unit | 3 180° rotatable M12 connector | 4 Simple installation using 2 captive screws | 5 RJ45 connector socket with protective cap | 6 Spring clips (adapt to different door panel thicknesses)

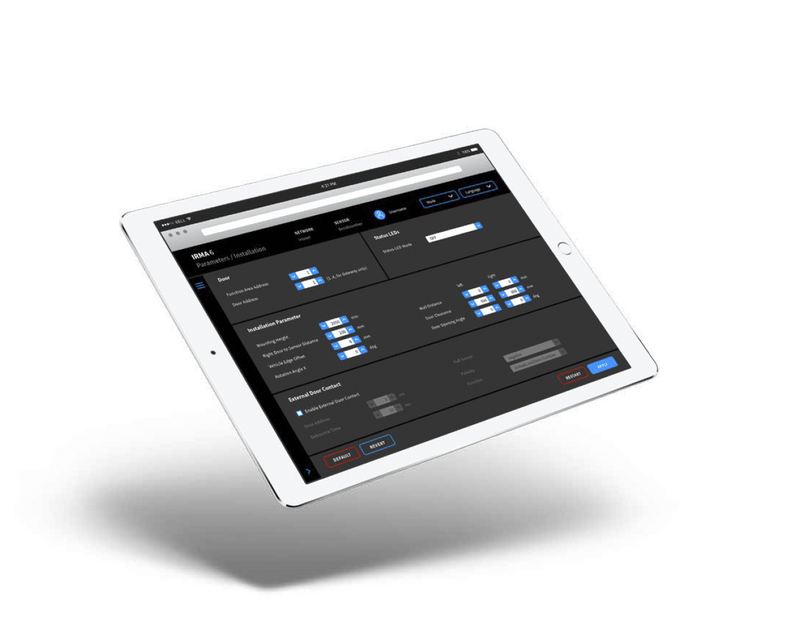

A user-friendly web interface with an online connection allows direct access to the system using a browser.
