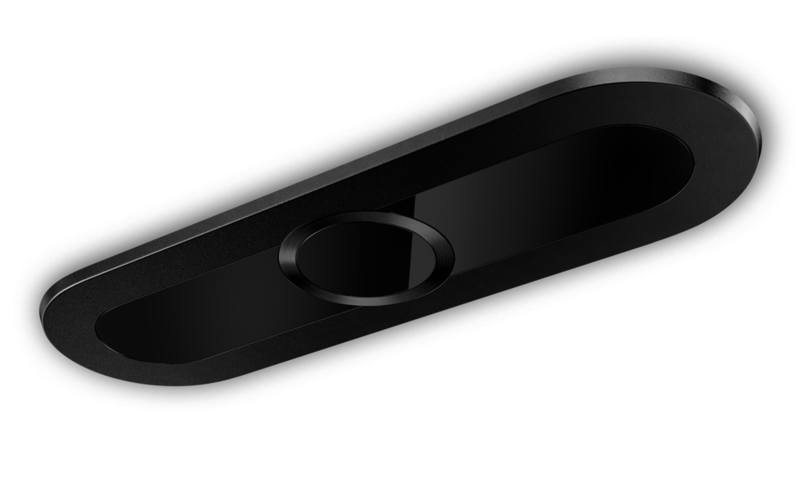

IRMA 6 R2
A new standard for future-proof Automatic Passenger Counting and object recognition
Platform Doors Ferries Bus Subway Tram Train

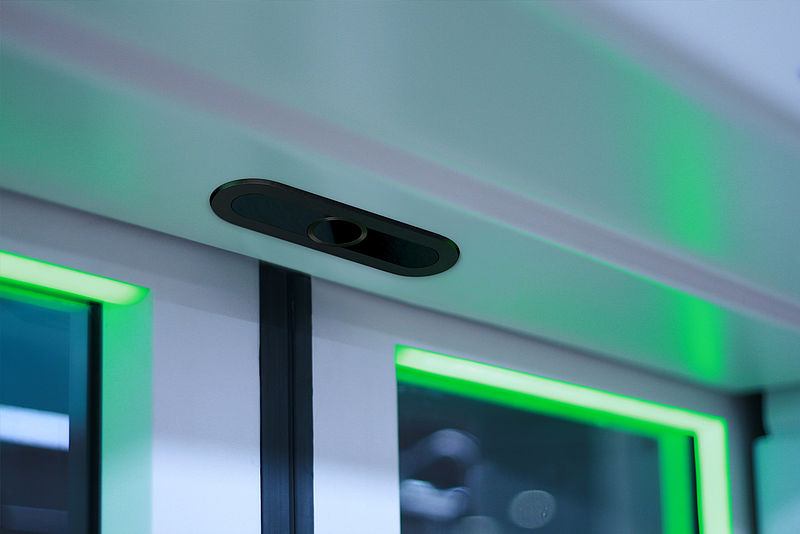

Ready for the rush hour. Ready for every new day. IRMA 6R2 takes Automatic Passenger Counting to the next level. The high-tech counting sensor expands the possibilities of the proven time-of-flight technology in all respects. This enables IRMA 6R2 to provide highly detailed 3D images in real time.
Simpler, more intuitive and flexible
State-of-the-art signal processing reliably detects passengers boarding and alighting the vehicle as well as relevant objects such as wheelchairs and bicycles. The installation is faster and simpler than ever before. The implementation of the ITxPT sensor communication achieves maximum standardization. IRMA 6R2 = Plug&Play.
PRECISE + FAST
High-tech sensor to differentiate and count people and objects (adults, children, bicycles, wheelchairs) based on 3D data and AI algorithms Simultaneous detection of the direction of movement of passengers boarding and alighting (even with low door heights and crowds) Latest generation 4-core processor, AI processor, graphics processor, digital signal processor Real-time transfer of highly accurate raw data to the on-board computer, a server or to the Cloud (IoT-capable)
- High-tech sensor to differentiate and count people and objects (adults, children, bicycles, wheelchairs) based on 3D data and AI algorithms
- Simultaneous detection of the direction of movement of passengers boarding and alighting (even with low door heights and crowds)
- Latest generation 4-core processor, AI processor, graphics processor, digital signal processor
- Real-time transfer of highly accurate raw data
- to the on-board computer, a server or to the
- Cloud (IoT-capable)
SECURE
Role-based user management Secure firmware and firmware updates through signing Event logging even in the case of power outages for troubleshooting and security incidents
- Role-based user management
- Secure firmware and firmware updates through signing
- Event logging even in the case of power outages for troubleshooting and security incidents
USER-FRIENDLY + ADAPTABLE

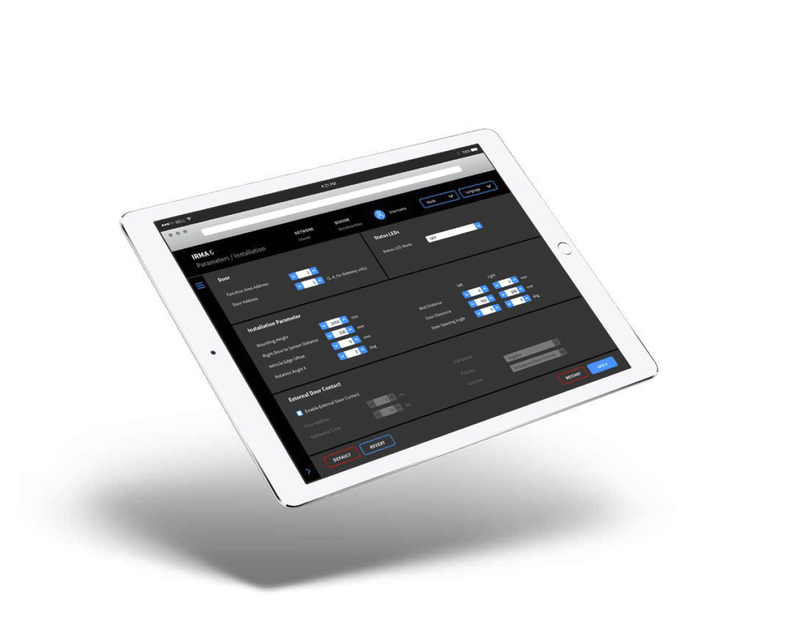

Plug&Play: Straightforward installation with an integrated mounting system and few configuration parameters Simple commissioning of the sensor through import/export of the configuration Customer-specific accessories and a large choice of cables for different installation requirements Intuitive, secure, multilingual web interface for installation and service

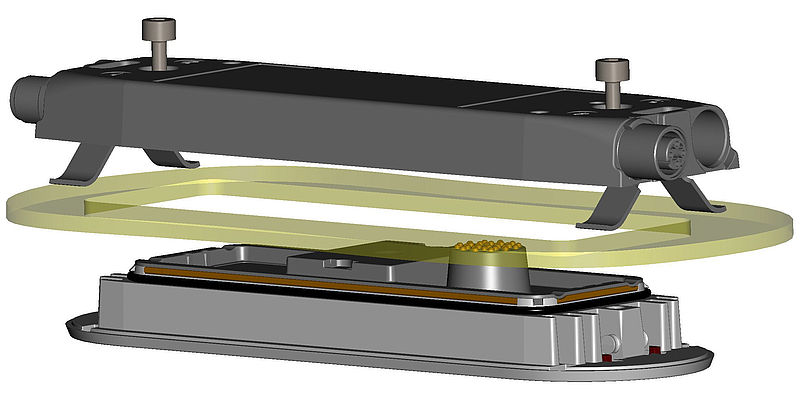

- Plug&Play: Straightforward installation with an integrated mounting system and few configuration parameters
- Simple commissioning of the sensor through import/export of the configuration
- Customer-specific accessories and a large choice of cables for different installation requirements
- Intuitive, secure, multilingual web interface for installation and service
MULTI-FUNCTIONAL + ROBUST
Independent of ambient light due to active illumination with laser-based VCSEL technology Self-diagnosis: Sensor status displayed via LEDs, web interface and log queries for quick troubleshooting Automation of updates, configuration and commissioning thanks to comprehensive API
- Independent of ambient light due to active illumination with laser-based VCSEL technology
- Self-diagnosis: Sensor status displayed via LEDs, web interface and log queries for quick troubleshooting
- Automation of updates, configuration and commissioning thanks to comprehensive API
FUTURE-PROOF
Latest hardware with long-term availability andmaximum computing power for durable operationin public transport Flexible sensor platform for future expansions and new features
- Latest hardware with long-term availability andmaximum computing power for durable operationin public transport
- Flexible sensor platform for future expansions and new features
